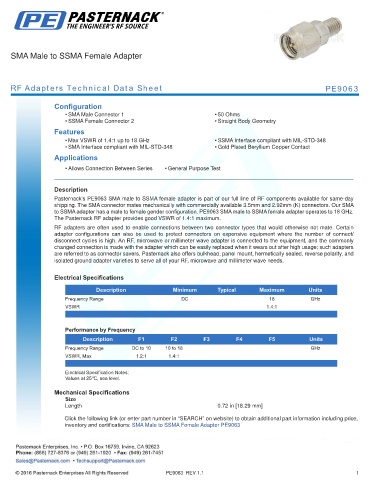

SMA Male to SSMA Female Adapter

RF Adapters Technical Data Sheet PE9063

Configuration
• SMA Male Connector 1 • 50 Ohms
• SSMA Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.4:1 up to 18 GHz • SSMA Interface compliant with MIL-STD-348
• SMA Interface compliant with MIL-STD-348 • Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9063 SMA male to SSMA female adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to SSMA adapter has a male to female gender configuration. PE9063 SMA male to SSMA female adapter operates to 18 GHz.
The Pasternack RF adapter provides good VSWR of 1.4:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.4:1
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 10 10 to 18 GHz
VSWR, Max 1.2:1 1.4:1
.
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.72 in [18.29 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SSMA Female Adapter PE9063

PE9063 REV 1.1 1
