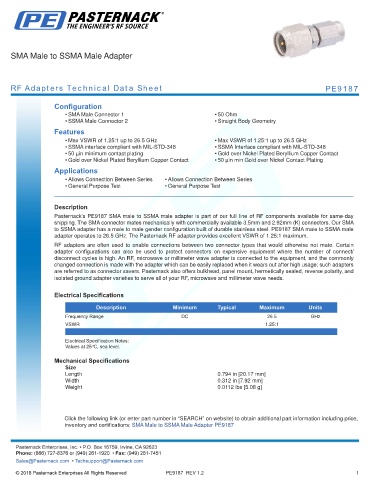

SMA Male to SSMA Male Adapter

RF Adapters Technical Data Sheet PE9187

Configuration
• SMA Male Connector 1 • 50 Ohm
• SSMA Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 26.5 GHz • Max VSWR of 1.25:1 up to 26.5 GHz
• SSMA interface compliant with MIL-STD-348 • SSMA Interface compliant with MIL-STD-348
• 50 µin minimum contact plating • Gold over Nickel Plated Beryllium Copper Contact
• Gold over Nickel Plated Beryllium Copper Contact • 50 µin min Gold over Nickel Contact Plating
Applications
• Allows Connection Between Series • Allows Connection Between Series
• General Purpose Test • General Purpose Test
.
Description
Pasternack’s PE9187 SMA male to SSMA male adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to SSMA adapter has a male to male gender configuration built of durable stainless steel. PE9187 SMA male to SSMA male
adapter operates to 26.5 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 26.5 GHz
VSWR 1.25:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.794 in [20.17 mm]
Width 0.312 in [7.92 mm]
Weight 0.0112 lbs [5.08 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male to SSMA Male Adapter PE9187
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9187 REV 1.2 1
