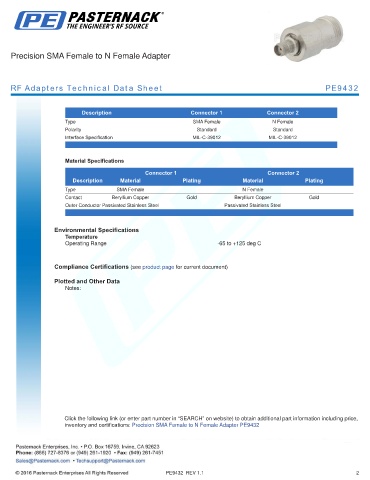

Precision SMA Female to N Female Adapter

RF Adapters Technical Data Sheet PE9432

.
Description Connector 1 Connector 2
Type SMA Female N Female
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female N Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Female to N Female Adapter PE9432
