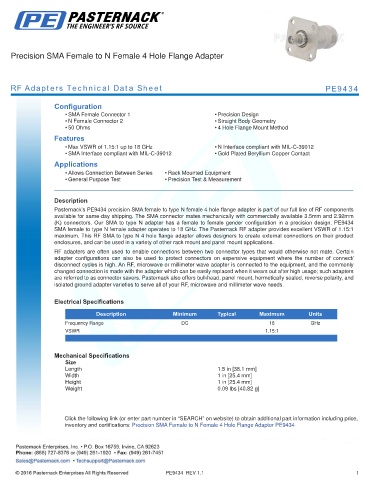

Precision SMA Female to N Female 4 Hole Flange Adapter

RF Adapters Technical Data Sheet PE9434

Configuration
• SMA Female Connector 1 • Precision Design
• N Female Connector 2 • Straight Body Geometry
• 50 Ohms • 4 Hole Flange Mount Method
Features
• Max VSWR of 1.15:1 up to 18 GHz • N Interface compliant with MIL-C-39012
• SMA Interface compliant with MIL-C-39012 • Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • Rack Mounted Equipment
• General Purpose Test • Precision Test & Measurement
.
Description
Pasternack’s PE9434 precision SMA female to type N female 4 hole flange adapter is part of our full line of RF components
available for same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm
(K) connectors. Our SMA to type N adapter has a female to female gender configuration in a precision design. PE9434
SMA female to type N female adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.15:1
maximum. This RF SMA to type N 4 hole flange adapter allows designers to create external connections on their product
enclosures, and can be used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.15:1
. .

Mechanical Specifications
Size
Length 1.5 in [38.1 mm]
Width 1 in [25.4 mm]
Height 1 in [25.4 mm]
Weight 0.09 lbs [40.82 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Female to N Female 4 Hole Flange Adapter PE9434

PE9434 REV 1.1 1
