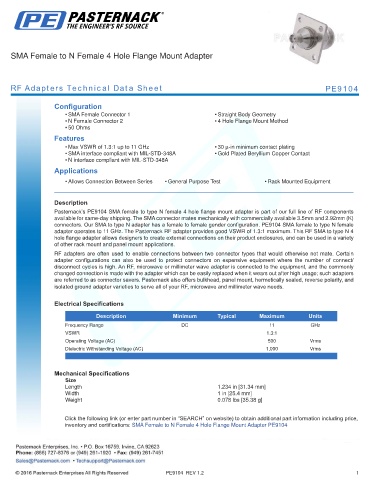

SMA Female to N Female 4 Hole Flange Mount Adapter

RF Adapters Technical Data Sheet PE9104

Configuration
• SMA Female Connector 1 • Straight Body Geometry
• N Female Connector 2 • 4 Hole Flange Mount Method
• 50 Ohms
Features
• Max VSWR of 1.3:1 up to 11 GHz • 30 µ-in minimum contact plating
• SMA interface compliant with MIL-STD-348A • Gold Plated Beryllium Copper Contact
• N interface compliant with MIL-STD-348A
Applications

• Allows Connection Between Series • General Purpose Test • Rack Mounted Equipment
.
Description
Pasternack’s PE9104 SMA female to type N female 4 hole flange mount adapter is part of our full line of RF components
available for same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K)
connectors. Our SMA to type N adapter has a female to female gender configuration. PE9104 SMA female to type N female
adapter operates to 11 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum. This RF SMA to type N 4
hole flange adapter allows designers to create external connections on their product enclosures, and can be used in a variety
of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
. .

Mechanical Specifications
Size
Length 1.234 in [31.34 mm]
Width 1 in [25.4 mm]
Weight 0.078 lbs [35.38 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to N Female 4 Hole Flange Mount Adapter PE9104

PE9104 REV 1.2 1
