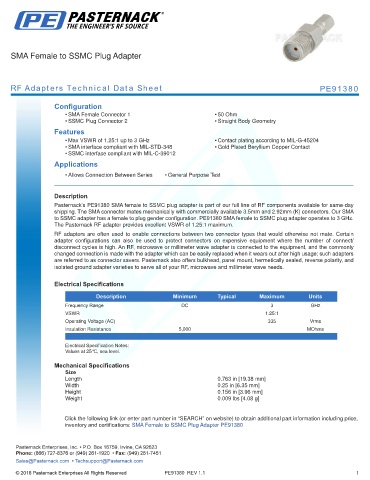

SMA Female to SSMC Plug Adapter

RF Adapters Technical Data Sheet PE91380

Configuration
• SMA Female Connector 1 • 50 Ohm
• SSMC Plug Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 3 GHz • Contact plating according to MIL-G-45204
• SMA interface compliant with MIL-STD-348 • Gold Plated Beryllium Copper Contact
• SSMC interface compliant with MIL-C-39012
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE91380 SMA female to SSMC plug adapter is part of our full line of RF components available for same-day
shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors. Our SMA
to SSMC adapter has a female to plug gender configuration. PE91380 SMA female to SSMC plug adapter operates to 3 GHz.
The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.25:1
Operating Voltage (AC) 335 Vrms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 0.763 in [19.38 mm]
Width 0.25 in [6.35 mm]
Height 0.156 in [3.96 mm]
Weight 0.009 lbs [4.08 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SSMC Plug Adapter PE91380
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91380 REV 1.1 1
