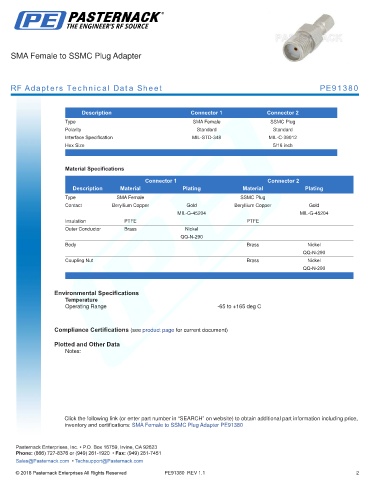

SMA Female to SSMC Plug Adapter

RF Adapters Technical Data Sheet PE91380

.
Description Connector 1 Connector 2
Type SMA Female SSMC Plug
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-C-39012
Hex Size 5/16 inch
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female SSMC Plug
Contact Beryllium Copper Gold Beryllium Copper Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to SSMC Plug Adapter PE91380
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91380 REV 1.1 2
