Reverse Polarity SMA Female to
Reverse Polarity TNC Female Adapter

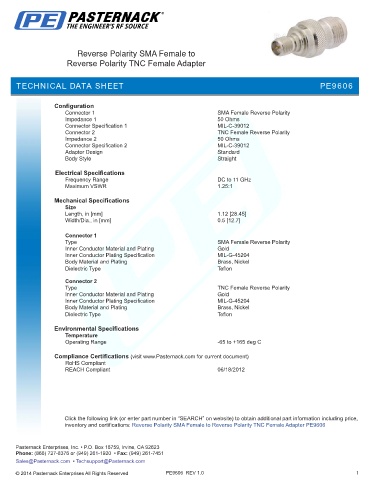

TECHNICAL DATA SHEET PE9606

Configuration
Connector 1 SMA Female Reverse Polarity
Impedance 1 50 Ohms
Connector Specification 1 MIL-C-39012
Connector 2 TNC Female Reverse Polarity
Impedance 2 50 Ohms
Connector Specification 2 MIL-C-39012
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range DC to 11 GHz
Maximum VSWR 1.25:1
Mechanical Specifications
Size
Length, in [mm] 1.12 [28.45]
Width/Dia., in [mm] 0.5 [12.7]
.
Connector 1
Type SMA Female Reverse Polarity
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 2
Type TNC Female Reverse Polarity
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 06/18/2012

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Reverse Polarity SMA Female to Reverse Polarity TNC Female Adapter PE9606
