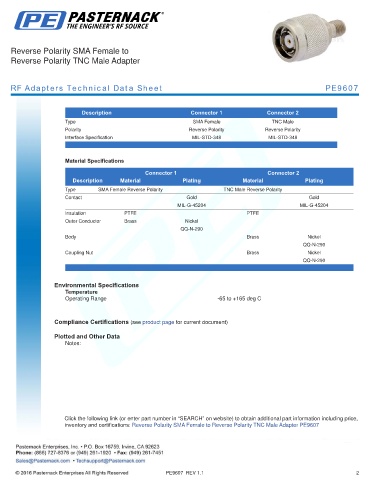

Reverse Polarity SMA Female to
Reverse Polarity TNC Male Adapter

RF Adapters Technical Data Sheet PE9607

.
Description Connector 1 Connector 2
Type SMA Female TNC Male
Polarity Reverse Polarity Reverse Polarity
Interface Specification MIL-STD-348 MIL-STD-348
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type SMA Female Reverse Polarity TNC Male Reverse Polarity
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Reverse Polarity SMA Female to Reverse Polarity TNC Male Adapter PE9607

PE9607 REV 1.1 2
