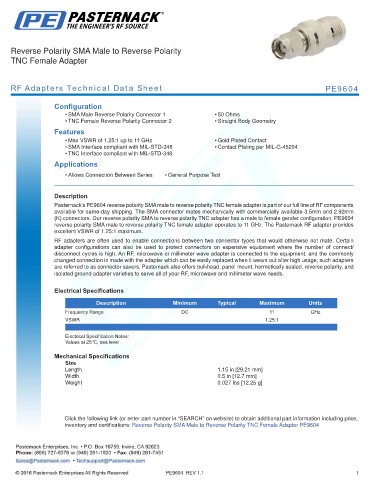

Reverse Polarity SMA Male to Reverse Polarity
TNC Female Adapter

RF Adapters Technical Data Sheet PE9604

Configuration
• SMA Male Reverse Polarity Connector 1 • 50 Ohms
• TNC Female Reverse Polarity Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 11 GHz • Gold Plated Contact
• SMA Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
• TNC Interface compliant with MIL-STD-348
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE9604 reverse polarity SMA male to reverse polarity TNC female adapter is part of our full line of RF components
available for same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm
(K) connectors. Our reverse polarity SMA to reverse polarity TNC adapter has a male to female gender configuration. PE9604
reverse polarity SMA male to reverse polarity TNC female adapter operates to 11 GHz. The Pasternack RF adapter provides
excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.25:1
. .
Electrical Specification Notes:
Values at 25°C, sea level

Mechanical Specifications
Size
Length 1.15 in [29.21 mm]
Width 0.5 in [12.7 mm]
Weight 0.027 lbs [12.25 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Reverse Polarity SMA Male to Reverse Polarity TNC Female Adapter PE9604

PE9604 REV 1.1 1
