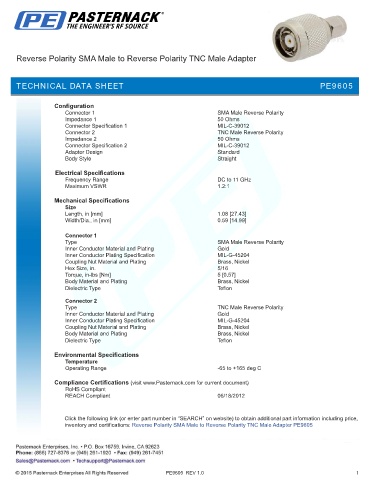

Reverse Polarity SMA Male to Reverse Polarity TNC Male Adapter

TECHNICAL DATA SHEET PE9605

Configuration
Connector 1 SMA Male Reverse Polarity
Impedance 1 50 Ohms
Connector Specification 1 MIL-C-39012
Connector 2 TNC Male Reverse Polarity
Impedance 2 50 Ohms
Connector Specification 2 MIL-C-39012
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range DC to 11 GHz
Maximum VSWR 1.2:1
Mechanical Specifications
Size
Length, in [mm] 1.08 [27.43]
Width/Dia., in [mm] 0.59 [14.99]
.
Connector 1
Type SMA Male Reverse Polarity
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Hex Size, in. 5/16
Torque, in-lbs [Nm] 5 [0.57]
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 2
Type TNC Male Reverse Polarity
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 06/18/2012

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Reverse Polarity SMA Male to Reverse Polarity TNC Male Adapter PE9605

PE9605 REV 1.0 1
