UHF Male to FME Plug Adapter

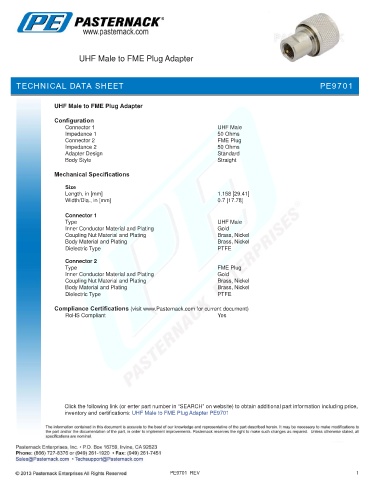

TECHNICAL DATA SHEET PE9701

UHF Male to FME Plug Adapter

Configuration
Connector 1 UHF Male
Impedance 1 50 Ohms
Connector 2 FME Plug
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 1.158 [29.41]
Width/Dia., in [mm] 0.7 [17.78]
.
Connector 1
Type UHF Male
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Connector 2
Type FME Plug
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Male to FME Plug Adapter PE9701

PE9701 REV 1
