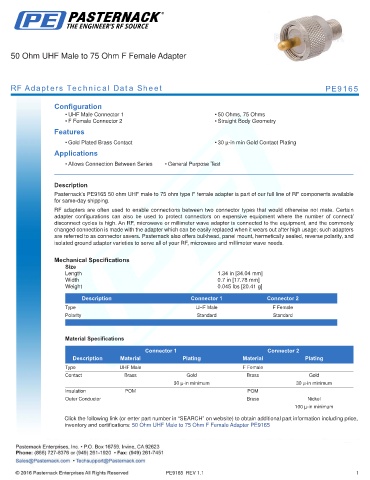

50 Ohm UHF Male to 75 Ohm F Female Adapter

RF Adapters Technical Data Sheet PE9165

Configuration
• UHF Male Connector 1 • 50 Ohms, 75 Ohms
• F Female Connector 2 • Straight Body Geometry
Features

• Gold Plated Brass Contact • 30 µ-in min Gold Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9165 50 ohm UHF male to 75 ohm type F female adapter is part of our full line of RF components available
for same-day shipping.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.34 in [34.04 mm]
Width 0.7 in [17.78 mm]
Weight 0.045 lbs [20.41 g]
.
Description Connector 1 Connector 2
Type UHF Male F Female
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type UHF Male F Female
Contact Brass Gold Brass Gold
30 µ-in minimum 30 µ-in minimum
Insulation POM POM
Outer Conductor Brass Nickel
100 µ-in minimum

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm UHF Male to 75 Ohm F Female Adapter PE9165
