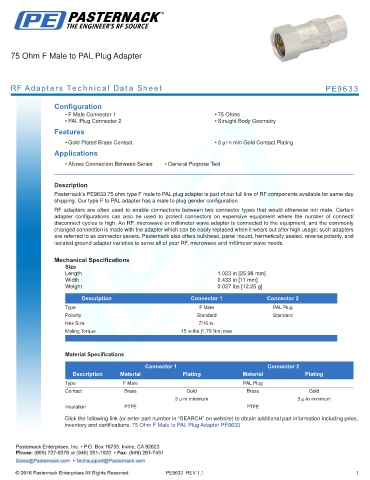

75 Ohm F Male to PAL Plug Adapter

RF Adapters Technical Data Sheet PE9633

Configuration
• F Male Connector 1 • 75 Ohms
• PAL Plug Connector 2 • Straight Body Geometry
Features

• Gold Plated Brass Contact • 3 µ-in min Gold Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9633 75 ohm type F male to PAL plug adapter is part of our full line of RF components available for same-day
shipping. Our type F to PAL adapter has a male to plug gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.023 in [25.98 mm]
Width 0.433 in [11 mm]
Weight 0.027 lbs [12.25 g]
.
Description Connector 1 Connector 2
Type F Male PAL Plug
Polarity Standard Standard
Hex Size 7/16 in.
Mating Torque 15 in-lbs [1.70 Nm] max
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type F Male PAL Plug
Contact Brass Gold Brass Gold
3 µ-in minimum 3 µ-in minimum
Insulation PTFE PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male to PAL Plug Adapter PE9633

PE9633 REV 1.1 1
