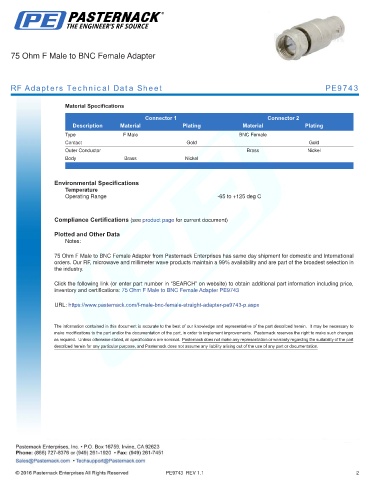

75 Ohm F Male to BNC Female Adapter

RF Adapters Technical Data Sheet PE9743

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type F Male BNC Female
Contact Gold Gold
Outer Conductor Brass Nickel
Body Brass Nickel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm F Male to BNC Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male to BNC Female Adapter PE9743

URL: https://www.pasternack.com/f-male-bnc-female-straight-adapter-pe9743-p.aspx
