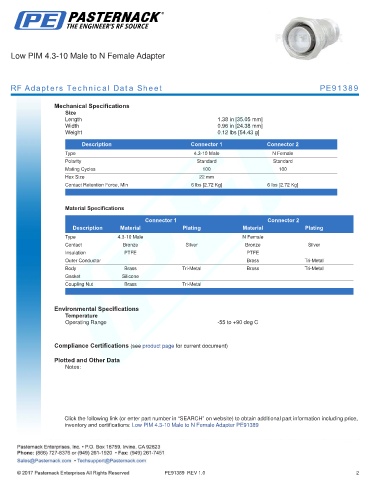

Low PIM 4.3-10 Male to N Female Adapter

RF Adapters Technical Data Sheet PE91389

Mechanical Specifications
Size
Length 1.38 in [35.05 mm]
Width 0.96 in [24.38 mm]
Weight 0.12 lbs [54.43 g]
.
Description Connector 1 Connector 2
Type 4.3-10 Male N Female
Polarity Standard Standard
Mating Cycles 100 100
Hex Size 22 mm
Contact Retention Force, Min 6 lbs [2.72 Kg] 6 lbs [2.72 Kg]
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 4.3-10 Male N Female
Contact Bronze Silver Bronze Silver
Insulation PTFE PTFE
Outer Conductor Brass Tri-Metal
Body Brass Tri-Metal Brass Tri-Metal
Gasket Silicone
Coupling Nut Brass Tri-Metal
. .

Environmental Specifications
Temperature
Operating Range -55 to +90 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM 4.3-10 Male to N Female Adapter PE91389

PE91389 REV 1.0 2
