7/16 DIN Male to 7/16 DIN Male Adapter IP67 UnMated

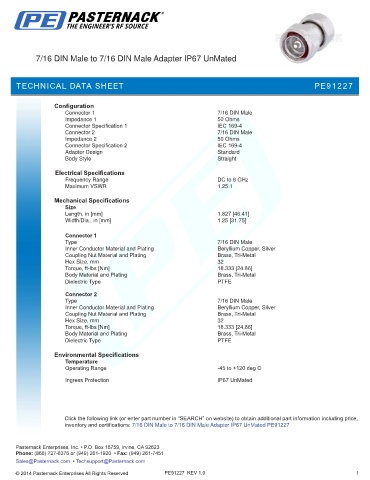

TECHNICAL DATA SHEET PE91227

Configuration
Connector 1 7/16 DIN Male
Impedance 1 50 Ohms
Connector Specification 1 IEC 169-4
Connector 2 7/16 DIN Male
Impedance 2 50 Ohms
Connector Specification 2 IEC 169-4
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range DC to 6 GHz
Maximum VSWR 1.25:1
Mechanical Specifications
Size
Length, in [mm] 1.827 [46.41]
Width/Dia., in [mm] 1.25 [31.75]
.
Connector 1
Type 7/16 DIN Male
Inner Conductor Material and Plating Beryllium Copper, Silver
Coupling Nut Material and Plating Brass, Tri-Metal
Hex Size, mm 32
Torque, ft-lbs [Nm] 18.333 [24.86]
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE

Connector 2
Type 7/16 DIN Male
Inner Conductor Material and Plating Beryllium Copper, Silver
Coupling Nut Material and Plating Brass, Tri-Metal
Hex Size, mm 32
Torque, ft-lbs [Nm] 18.333 [24.86]
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE
Environmental Specifications
Temperature
Operating Range -45 to +120 deg C

Ingress Protection IP67 UnMated

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to 7/16 DIN Male Adapter IP67 UnMated PE91227

PE91227 REV 1.0 1
