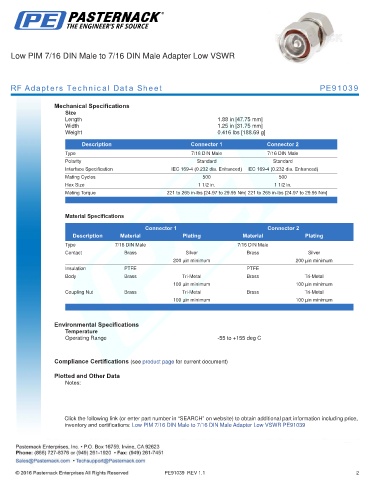

Low PIM 7/16 DIN Male to 7/16 DIN Male Adapter Low VSWR

RF Adapters Technical Data Sheet PE91039

Mechanical Specifications
Size
Length 1.88 in [47.75 mm]
Width 1.25 in [31.75 mm]
Weight 0.416 lbs [188.69 g]
.
Description Connector 1 Connector 2
Type 7/16 DIN Male 7/16 DIN Male
Polarity Standard Standard
Interface Specification IEC 169-4 (0.232 dia. Enhanced) IEC 169-4 (0.232 dia. Enhanced)
Mating Cycles 500 500
Hex Size 1 1/2 in. 1 1/2 in.
Mating Torque 221 to 265 in-lbs [24.97 to 29.95 Nm] 221 to 265 in-lbs [24.97 to 29.95 Nm]
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 7/16 DIN Male 7/16 DIN Male
Contact Brass Silver Brass Silver
200 µin minimum 200 µin minimum
Insulation PTFE PTFE
Body Brass Tri-Metal Brass Tri-Metal
100 µin minimum 100 µin minimum
Coupling Nut Brass Tri-Metal Brass Tri-Metal
100 µin minimum 100 µin minimum
. .

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM 7/16 DIN Male to 7/16 DIN Male Adapter Low VSWR PE91039
