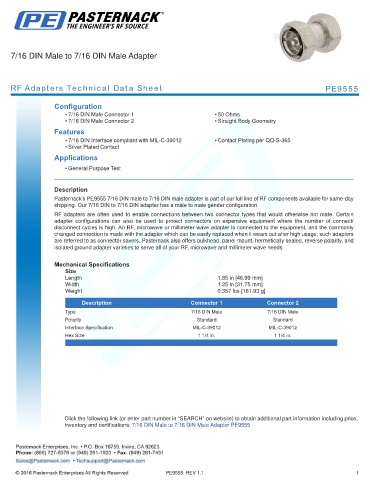

7/16 DIN Male to 7/16 DIN Male Adapter

RF Adapters Technical Data Sheet PE9555

Configuration
• 7/16 DIN Male Connector 1 • 50 Ohms
• 7/16 DIN Male Connector 2 • Straight Body Geometry
Features
• 7/16 DIN Interface compliant with MIL-C-39012 • Contact Plating per QQ-S-365
• Silver Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9555 7/16 DIN male to 7/16 DIN male adapter is part of our full line of RF components available for same-day
shipping. Our 7/16 DIN to 7/16 DIN adapter has a male to male gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.85 in [46.99 mm]
Width 1.25 in [31.75 mm]
Weight 0.357 lbs [161.93 g]
.
Description Connector 1 Connector 2
Type 7/16 DIN Male 7/16 DIN Male
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-C-39012
Hex Size 1 1/4 in. 1 1/4 in.
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to 7/16 DIN Male Adapter PE9555

PE9555 REV 1.1 1
