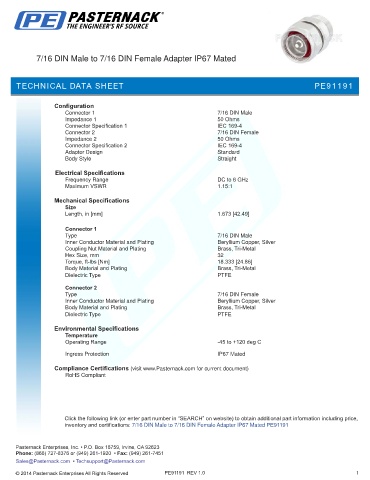

7/16 DIN Male to 7/16 DIN Female Adapter IP67 Mated

TECHNICAL DATA SHEET PE91191

Configuration
Connector 1 7/16 DIN Male
Impedance 1 50 Ohms
Connector Specification 1 IEC 169-4
Connector 2 7/16 DIN Female
Impedance 2 50 Ohms
Connector Specification 2 IEC 169-4
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range DC to 6 GHz
Maximum VSWR 1.15:1
Mechanical Specifications
Size
Length, in [mm] 1.673 [42.49]
.
Connector 1
Type 7/16 DIN Male
Inner Conductor Material and Plating Beryllium Copper, Silver
Coupling Nut Material and Plating Brass, Tri-Metal
Hex Size, mm 32
Torque, ft-lbs [Nm] 18.333 [24.86]
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE

Connector 2
Type 7/16 DIN Female
Inner Conductor Material and Plating Beryllium Copper, Silver
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE

Environmental Specifications
Temperature
Operating Range -45 to +120 deg C
Ingress Protection IP67 Mated

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to 7/16 DIN Female Adapter IP67 Mated PE91191

PE91191 REV 1.0 1
