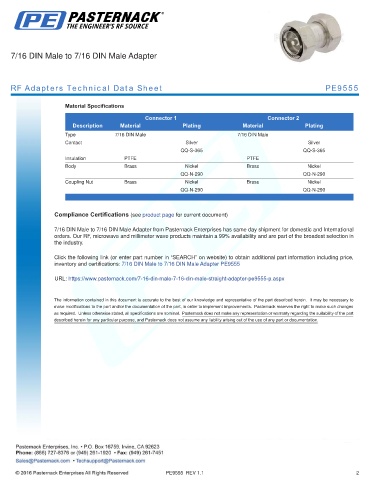

7/16 DIN Male to 7/16 DIN Male Adapter

RF Adapters Technical Data Sheet PE9555

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 7/16 DIN Male 7/16 DIN Male
Contact Silver Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Body Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
Coupling Nut Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .

Compliance Certifications (see product page for current document)
7/16 DIN Male to 7/16 DIN Male Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to 7/16 DIN Male Adapter PE9555

URL: https://www.pasternack.com/7-16-din-male-7-16-din-male-straight-adapter-pe9555-p.aspx
