7/16 DIN Male to 4.1/9.5 Mini DIN Female Adapter IP67 Mated

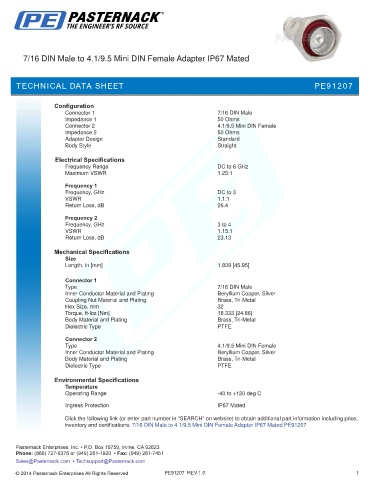

TECHNICAL DATA SHEET PE91207

Configuration
Connector 1 7/16 DIN Male
Impedance 1 50 Ohms
Connector 2 4.1/9.5 Mini DIN Female
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range DC to 6 GHz
Maximum VSWR 1.25:1

Frequency 1
Frequency, GHz DC to 3
VSWR 1.1:1
Return Loss, dB 26.4
Frequency 2
Frequency, GHz 3 to 4
VSWR 1.15:1
Return Loss, dB 23.13

Mechanical Specifications
Size
Length, in [mm] 1.809 [45.95]
.
Connector 1
Type 7/16 DIN Male
Inner Conductor Material and Plating Beryllium Copper, Silver
Coupling Nut Material and Plating Brass, Tri-Metal
Hex Size, mm 32
Torque, ft-lbs [Nm] 18.333 [24.86]
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE
Connector 2
Type 4.1/9.5 Mini DIN Female
Inner Conductor Material and Plating Beryllium Copper, Silver
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE

Environmental Specifications
Temperature
Operating Range -40 to +120 deg C

Ingress Protection IP67 Mated

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to 4.1/9.5 Mini DIN Female Adapter IP67 Mated PE91207

PE91207 REV 1.0 1
