Bulkhead 10-32 Male to BNC Female Adapter

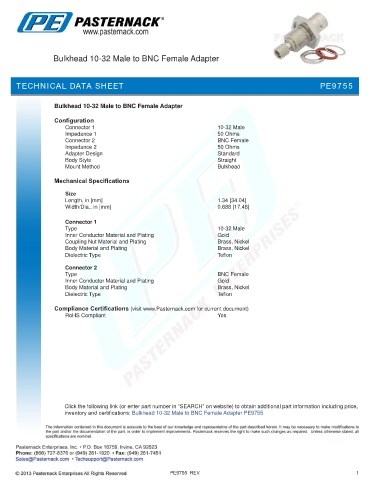

TECHNICAL DATA SHEET PE9755

Bulkhead 10-32 Male to BNC Female Adapter

Configuration
Connector 1 10-32 Male
Impedance 1 50 Ohms
Connector 2 BNC Female
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight
Mount Method Bulkhead
Mechanical Specifications

Size
Length, in [mm] 1.34 [34.04]
Width/Dia., in [mm] 0.688 [17.48]
.
Connector 1
Type 10-32 Male
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 2
Type BNC Female
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead 10-32 Male to BNC Female Adapter PE9755

PE9755 REV 1
