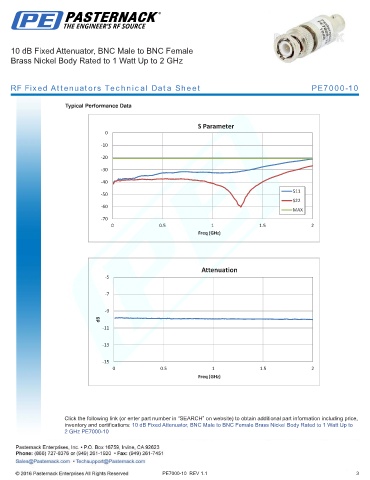

10 dB Fixed Attenuator, BNC Male to BNC Female
Brass Nickel Body Rated to 1 Watt Up to 2 GHz
RF Fixed Attenuators Technical Data Sheet PE7000-10
Typical Performance Data
S Parameter
0
-10
-20
-30
-40
S11
-50
S22
-60
MAX
-70
0 0.5 1 1.5 2
Freq (GHz)
Attenuation
-5
-7
-9
dB
-11
-13
-15
0 0.5 1 1.5 2
Freq (GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 10 dB Fixed Attenuator, BNC Male to BNC Female Brass Nickel Body Rated to 1 Watt Up to
2 GHz PE7000-10
PE7000-10 REV 1.1 3
