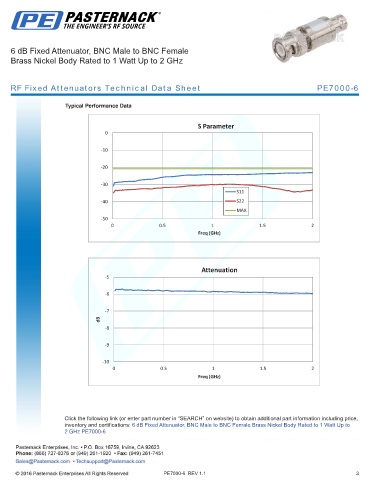

6 dB Fixed Attenuator, BNC Male to BNC Female
Brass Nickel Body Rated to 1 Watt Up to 2 GHz
RF Fixed Attenuators Technical Data Sheet PE7000-6
Typical Performance Data
S Parameter
0
-10
-20
-30
S11
-40 S22
MAX
-50
0 0.5 1 1.5 2
Freq (GHz)
Attenuation
-5
-6
-7
dB
-8
-9
-10
0 0.5 1 1.5 2
Freq (GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 6 dB Fixed Attenuator, BNC Male to BNC Female Brass Nickel Body Rated to 1 Watt Up to
2 GHz PE7000-6
PE7000-6 REV 1.1 3
