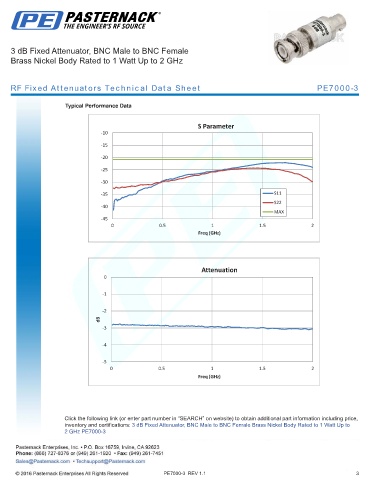

3 dB Fixed Attenuator, BNC Male to BNC Female
Brass Nickel Body Rated to 1 Watt Up to 2 GHz
RF Fixed Attenuators Technical Data Sheet PE7000-3
Typical Performance Data
S Parameter
-10
-15
-20
-25
-30
-35 S11
S22
-40
MAX
-45
0 0.5 1 1.5 2
Freq (GHz)
Attenuation
0
-1
-2
dB
-3
-4
-5
0 0.5 1 1.5 2
Freq (GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3 dB Fixed Attenuator, BNC Male to BNC Female Brass Nickel Body Rated to 1 Watt Up to
2 GHz PE7000-3
