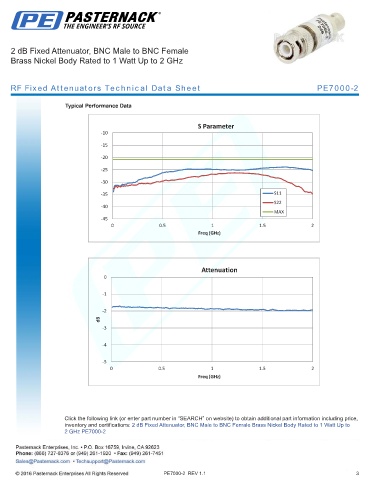

2 dB Fixed Attenuator, BNC Male to BNC Female
Brass Nickel Body Rated to 1 Watt Up to 2 GHz

RF Fixed Attenuators Technical Data Sheet PE7000-2

Typical Performance Data

S Parameter
-10
-15

-20
-25

-30
-35 S11
S22
-40
MAX
-45
0 0.5 1 1.5 2
Freq (GHz)

Attenuation
0

-1

-2
dB
-3

-4

-5
0 0.5 1 1.5 2
Freq (GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2 dB Fixed Attenuator, BNC Male to BNC Female Brass Nickel Body Rated to 1 Watt Up to
2 GHz PE7000-2

PE7000-2 REV 1.1 3
