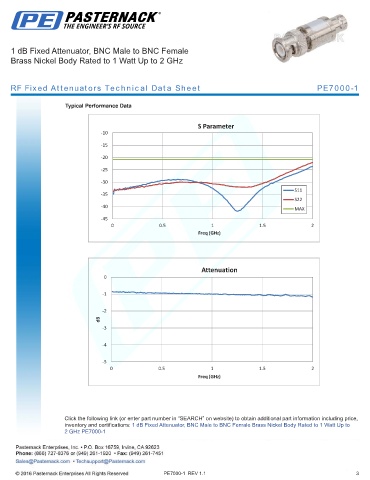

1 dB Fixed Attenuator, BNC Male to BNC Female
Brass Nickel Body Rated to 1 Watt Up to 2 GHz

RF Fixed Attenuators Technical Data Sheet PE7000-1

Typical Performance Data

S Parameter
-10
-15

-20
-25

-30
S11
-35
S22
-40 MAX
-45
0 0.5 1 1.5 2
Freq (GHz)

Attenuation
0

-1

-2
dB
-3

-4

-5
0 0.5 1 1.5 2
Freq (GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1 dB Fixed Attenuator, BNC Male to BNC Female Brass Nickel Body Rated to 1 Watt Up to
2 GHz PE7000-1

PE7000-1 REV 1.1 3
