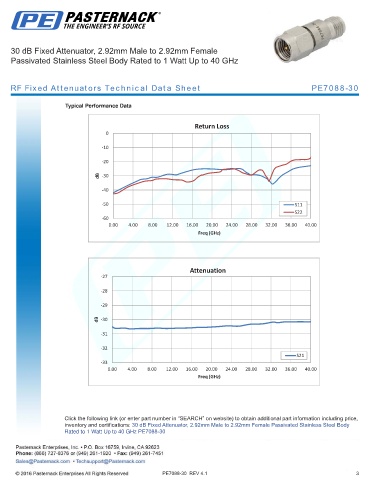

30 dB Fixed Attenuator, 2.92mm Male to 2.92mm Female
Passivated Stainless Steel Body Rated to 1 Watt Up to 40 GHz
RF Fixed Attenuators Technical Data Sheet PE7088-30
Typical Performance Data
Return Loss
0
-10
-20
dB -30
-40
-50 S11
S22
-60
0.00 4.00 8.00 12.00 16.00 20.00 24.00 28.00 32.00 36.00 40.00
Freq (GHz)
Attenuation
-27
-28
-29
dB -30
-31
-32
S21
-33
0.00 4.00 8.00 12.00 16.00 20.00 24.00 28.00 32.00 36.00 40.00
Freq (GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 30 dB Fixed Attenuator, 2.92mm Male to 2.92mm Female Passivated Stainless Steel Body
Rated to 1 Watt Up to 40 GHz PE7088-30
