3 dB Fixed Attenuator, N Male To N Female Brass
Nickel Body Rated To 1 Watt Up To 2 GHz

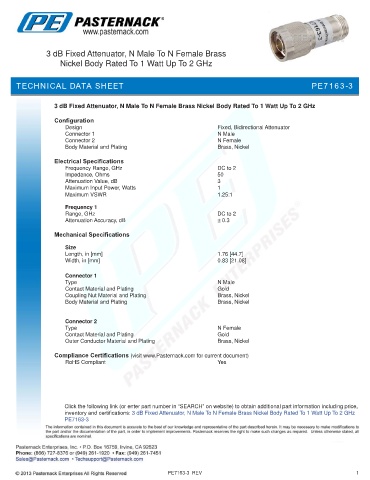

TECHNICAL DATA SHEET PE7163-3
3 dB Fixed Attenuator, N Male To N Female Brass Nickel Body Rated To 1 Watt Up To 2 GHz
Configuration
Design Fixed, Bidirectional Attenuator
Connector 1 N Male
Connector 2 N Female
Body Material and Plating Brass, Nickel
Electrical Specifications
Frequency Range, GHz DC to 2
Impedance, Ohms 50
Attenuation Value, dB 3
Maximum Input Power, Watts 1
Maximum VSWR 1.25:1
Frequency 1
Range, GHz DC to 2
Attenuation Accuracy, dB ± 0.3
Mechanical Specifications
Size
Length, in [mm] 1.76 [44.7]
Width, in [mm] 0.83 [21.08]
.
Connector 1
Type N Male
Contact Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Connector 2
Type N Female
Contact Material and Plating Gold
Outer Conductor Material and Plating Brass, Nickel
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3 dB Fixed Attenuator, N Male To N Female Brass Nickel Body Rated To 1 Watt Up To 2 GHz
PE7163-3
PE7163-3 REV 1
