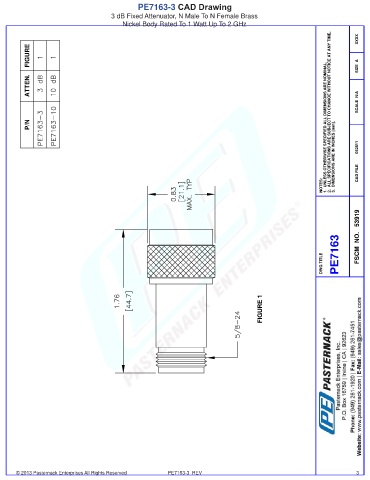

PE7163-3 CAD Drawing
3 dB Fixed Attenuator, N Male To N Female Brass
Nickel Body Rated To 1 Watt Up To 2 GHz
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
FIGURE SIZE A

ATTEN.

SCALE N/A

P/N 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
3. DIMENSIONS ARE IN INCHES [mm]. 032811

NOTES: CAD FILE

DWG TITLE PE7163 FSCM NO. 53919

FIGURE 1

© 2013 Pasternack Enterprises All Rights Reserved PE7163-3 REV 3
