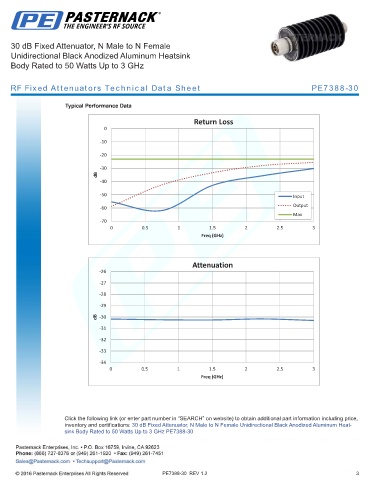

30 dB Fixed Attenuator, N Male to N Female
Unidirectional Black Anodized Aluminum Heatsink
Body Rated to 50 Watts Up to 3 GHz

RF Fixed Attenuators Technical Data Sheet PE7388-30

Typical Performance Data

Return Loss
0
-10

-20

-30
dB
-40

-50 Input
-60 Output
Max
-70
0 0.5 1 1.5 2 2.5 3
Freq (GHz)

Attenuation
-26

-27
-28
-29

dB -30
-31
-32

-33
-34
0 0.5 1 1.5 2 2.5 3
Freq (GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 30 dB Fixed Attenuator, N Male to N Female Unidirectional Black Anodized Aluminum Heat-
sink Body Rated to 50 Watts Up to 3 GHz PE7388-30

PE7388-30 REV 1.2 3
