40 dB Fixed Attenuator, N Male to N Female
Unidirectional Black Anodized Aluminum Heatsink
Body Rated to 50 Watts Up to 3 GHz

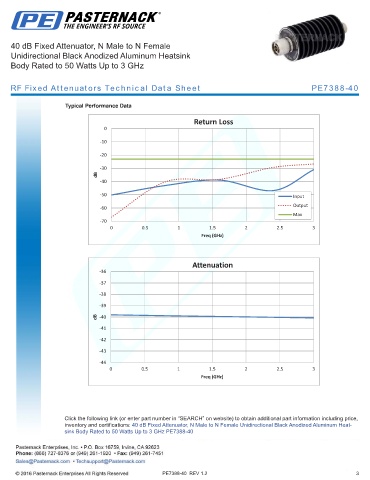

RF Fixed Attenuators Technical Data Sheet PE7388-40

Typical Performance Data

Return Loss
0
-10

-20

-30
dB
-40

-50 Input
-60 Output
Max
-70
0 0.5 1 1.5 2 2.5 3
Freq (GHz)

Attenuation
-36

-37
-38
-39

dB -40
-41
-42

-43
-44
0 0.5 1 1.5 2 2.5 3
Freq (GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 40 dB Fixed Attenuator, N Male to N Female Unidirectional Black Anodized Aluminum Heat-
sink Body Rated to 50 Watts Up to 3 GHz PE7388-40

PE7388-40 REV 1.2 3
