6 dB Fixed Attenuator, N Male to N Female
Directional Black Anodized Aluminum Heatsink
Body Rated to 50 Watts Up to 18 GHz

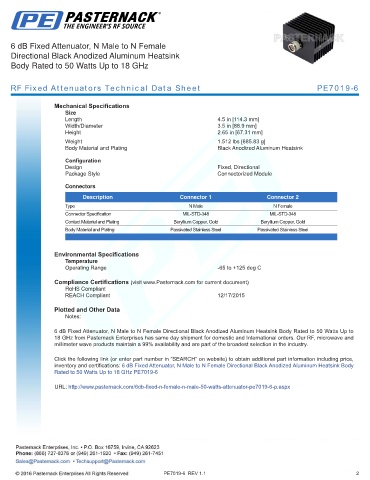

RF Fixed Attenuators Technical Data Sheet PE7019-6

Mechanical Specifications
Size
Length 4.5 in [114.3 mm]
Width/Diameter 3.5 in [88.9 mm]
Height 2.65 in [67.31 mm]
.
Weight 1.512 lbs [685.83 g]
Body Material and Plating Black Anodized Aluminum Heatsink
Configuration
Design Fixed, Directional
Package Style Connectorized Module

Connectors
Description Connector 1 Connector 2
Type N Male N Female
Connector Specification MIL-STD-348 MIL-STD-348
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
.

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015

Plotted and Other Data
Notes:

6 dB Fixed Attenuator, N Male to N Female Directional Black Anodized Aluminum Heatsink Body Rated to 50 Watts Up to
18 GHz from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and
millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 6 dB Fixed Attenuator, N Male to N Female Directional Black Anodized Aluminum Heatsink Body
Rated to 50 Watts Up to 18 GHz PE7019-6
