20 dB Fixed Attenuator, N Female To 7/16 DIN Male
Directional Rated To 50 Watts Up To 7.5 GHz

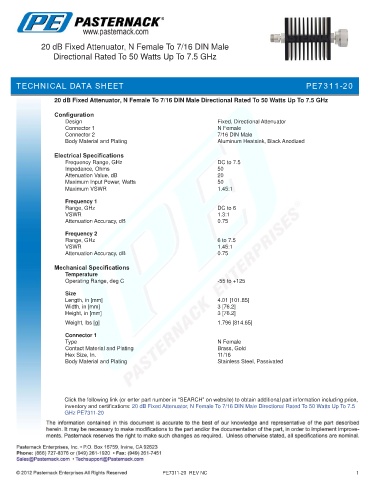

TECHNICAL DATA SHEET PE7311-20

20 dB Fixed Attenuator, N Female To 7/16 DIN Male Directional Rated To 50 Watts Up To 7.5 GHz

Configuration
Design Fixed, Directional Attenuator
Connector 1 N Female
Connector 2 7/16 DIN Male
Body Material and Plating Aluminum Heatsink, Black Anodized

Electrical Specifications
Frequency Range, GHz DC to 7.5
Impedance, Ohms 50
Attenuation Value, dB 20
Maximum Input Power, Watts 50
Maximum VSWR 1.45:1

Frequency 1
Range, GHz DC to 6
VSWR 1.3:1
Attenuation Accuracy, dB 0.75
Frequency 2
Range, GHz 6 to 7.5
VSWR 1.45:1
Attenuation Accuracy, dB 0.75
Mechanical Specifications
Temperature
Operating Range, deg C -55 to +125

Size
Length, in [mm] 4.01 [101.85]
Width, in [mm] 3 [76.2]
Height, in [mm] 3 [76.2]
.
Weight, lbs [g] 1.796 [814.65]
Connector 1
Type N Female
Contact Material and Plating Brass, Gold
Hex Size, In. 11/16
Body Material and Plating Stainless Steel, Passivated

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 20 dB Fixed Attenuator, N Female To 7/16 DIN Male Directional Rated To 50 Watts Up To 7.5
GHz PE7311-20

PE7311-20 REV NC 1
