12 dB Fixed Attenuator, QMA Male to QMA Female
Brass Tri-Metal Body Rated to 1 Watt Up to 6 GHz

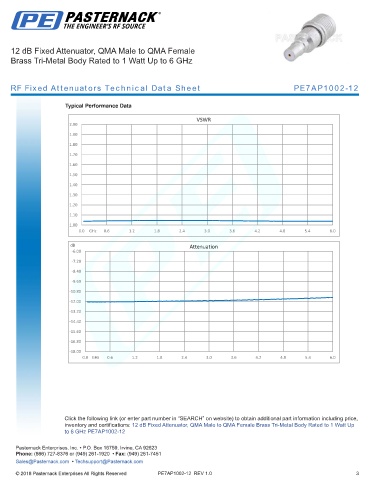

RF Fixed Attenuators Technical Data Sheet PE7AP1002-12
Typical Performance Data
VSWR
2.00
1.90
1.80
1.70
1.60
1.50
1.40
1.30
1.20
1.10
1.00
0.0 GHz 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6.0
dB Attenuation
-6.00
-7.20
-8.40
-9.60
-10.80
-12.00
-13.20
-14.40
-15.60
-16.80
-18.00
0.0 GHz 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6.0
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 12 dB Fixed Attenuator, QMA Male to QMA Female Brass Tri-Metal Body Rated to 1 Watt Up
to 6 GHz PE7AP1002-12 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE7AP1002-12 REV 1.0 3
