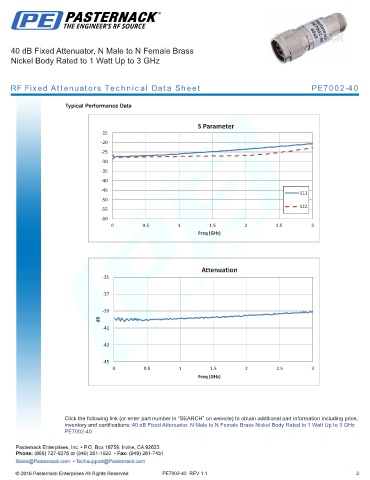

40 dB Fixed Attenuator, N Male to N Female Brass
Nickel Body Rated to 1 Watt Up to 3 GHz
RF Fixed Attenuators Technical Data Sheet PE7002-40
Typical Performance Data
S Parameter
-15
-20
-25
-30
-35
-40
-45
S11
-50
S22
-55
-60
0 0.5 1 1.5 2 2.5 3
Freq (GHz)
Attenuation
-35
-37
-39
dB
-41
-43
-45
0 0.5 1 1.5 2 2.5 3
Freq (GHz)
