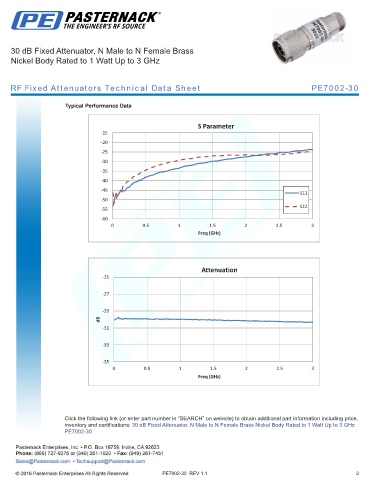

30 dB Fixed Attenuator, N Male to N Female Brass
Nickel Body Rated to 1 Watt Up to 3 GHz
RF Fixed Attenuators Technical Data Sheet PE7002-30
Typical Performance Data
S Parameter
-15
-20
-25
-30
-35
-40
-45
S11
-50
S22
-55
-60
0 0.5 1 1.5 2 2.5 3
Freq (GHz)
Attenuation
-25
-27
-29
dB
-31
-33
-35
0 0.5 1 1.5 2 2.5 3
Freq (GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 30 dB Fixed Attenuator, N Male to N Female Brass Nickel Body Rated to 1 Watt Up to 3 GHz
PE7002-30
