20 dB Fixed Attenuator, N Male to N Female Brass
Nickel Body Rated to 1 Watt Up to 3 GHz

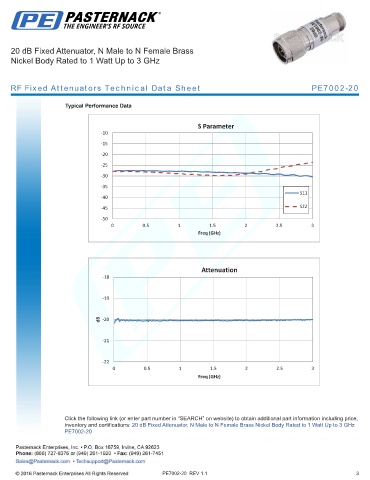

RF Fixed Attenuators Technical Data Sheet PE7002-20

Typical Performance Data

S Parameter
-10
-15
-20
-25

-30
-35
S11
-40
-45 S22
-50
0 0.5 1 1.5 2 2.5 3
Freq (GHz)

Attenuation
-18

-19

dB -20

-21

-22
0 0.5 1 1.5 2 2.5 3
Freq (GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 20 dB Fixed Attenuator, N Male to N Female Brass Nickel Body Rated to 1 Watt Up to 3 GHz
PE7002-20
