20 dB Fixed Attenuator, N Male to N Female Brass
Nickel Body Rated to 1 Watt Up to 3 GHz

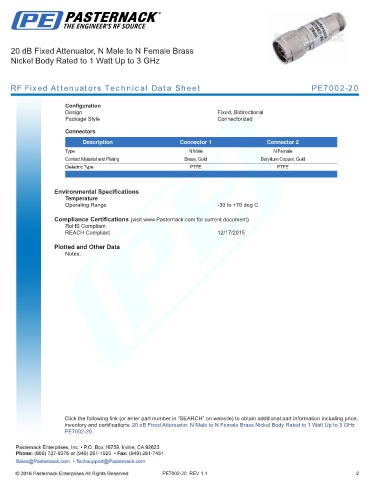

RF Fixed Attenuators Technical Data Sheet PE7002-20
Configuration
Design Fixed, Bidirectional
Package Style Connectorized
Connectors
Description Connector 1 Connector 2
Type N Male N Female
Contact Material and Plating Brass, Gold Beryllium Copper, Gold
Dielectric Type PTFE PTFE
.
Environmental Specifications
Temperature
Operating Range -30 to +70 deg C
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 20 dB Fixed Attenuator, N Male to N Female Brass Nickel Body Rated to 1 Watt Up to 3 GHz
PE7002-20
PE7002-20 REV 1.1 2
