10 dB Fixed Attenuator, TNC Male To TNC Female
Directional Aluminum Heatsink Black Anodized
Body Rated To 50 Watts Up To 18 GHz

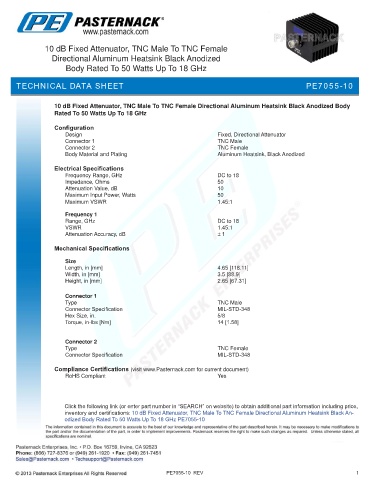

TECHNICAL DATA SHEET PE7055-10
10 dB Fixed Attenuator, TNC Male To TNC Female Directional Aluminum Heatsink Black Anodized Body
Rated To 50 Watts Up To 18 GHz
Configuration
Design Fixed, Directional Attenuator
Connector 1 TNC Male
Connector 2 TNC Female
Body Material and Plating Aluminum Heatsink, Black Anodized
Electrical Specifications
Frequency Range, GHz DC to 18
Impedance, Ohms 50
Attenuation Value, dB 10
Maximum Input Power, Watts 50
Maximum VSWR 1.45:1
Frequency 1
Range, GHz DC to 18
VSWR 1.45:1
Attenuation Accuracy, dB ± 1
Mechanical Specifications
Size
Length, in [mm] 4.65 [118.11]
Width, in [mm] 3.5 [88.9]
Height, in [mm] 2.65 [67.31]
.
Connector 1
Type TNC Male
Connector Specification MIL-STD-348
Hex Size, in. 5/8
Torque, in-lbs [Nm] 14 [1.58]
Connector 2
Type TNC Female
Connector Specification MIL-STD-348
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 10 dB Fixed Attenuator, TNC Male To TNC Female Directional Aluminum Heatsink Black An-
odized Body Rated To 50 Watts Up To 18 GHz PE7055-10
PE7055-10 REV 1
