20 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN
Female Directional Rated To 100 Watts Up To 6 GHz

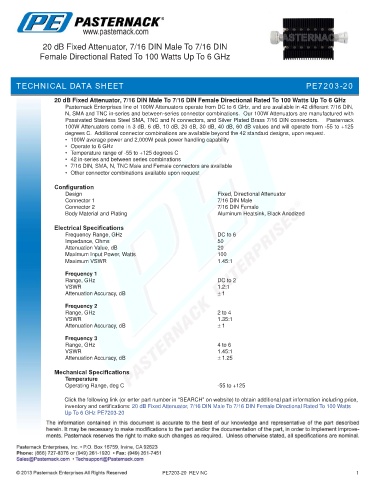

TECHNICAL DATA SHEET PE7203-20

20 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN Female Directional Rated To 100 Watts Up To 6 GHz
Pasternack Enterprises line of 100W Attenuators operate from DC to 6 GHz, and are available in 42 different 7/16 DIN,
N, SMA and TNC in-series and between-series connector combinations. Our 100W Attenuators are manufactured with
Passivated Stainless Steel SMA, TNC and N connectors, and Silver Plated Brass 7/16 DIN connectors. Pasternack
100W Attenuators come in 3 dB, 6 dB, 10 dB, 20 dB, 30 dB, 40 dB, 60 dB values and will operate from -55 to +125
degrees C. Additional connector combinations are available beyond the 42 standard designs, upon request.
• 100W average power and 2,000W peak power handling capability
• Operate to 6 GHz
• Temperature range of -55 to +125 degrees C
• 42 in-series and between series combinations
• 7/16 DIN, SMA, N, TNC Male and Female connectors are available
• Other connector combinations available upon request

Configuration
Design Fixed, Directional Attenuator
Connector 1 7/16 DIN Male
Connector 2 7/16 DIN Female
Body Material and Plating Aluminum Heatsink, Black Anodized

Electrical Specifications
Frequency Range, GHz DC to 6
Impedance, Ohms 50
Attenuation Value, dB 20
Maximum Input Power, Watts 100
Maximum VSWR 1.45:1

Frequency 1
Range, GHz DC to 2
VSWR 1.2:1
Attenuation Accuracy, dB ± 1
Frequency 2
Range, GHz 2 to 4
VSWR 1.35:1
Attenuation Accuracy, dB ± 1

Frequency 3
Range, GHz 4 to 6
VSWR 1.45:1
Attenuation Accuracy, dB ± 1.25

Mechanical Specifications
Temperature
Operating Range, deg C -55 to +125

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 20 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN Female Directional Rated To 100 Watts
Up To 6 GHz PE7203-20

PE7203-20 REV NC 1
