20 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN
Female Directional Rated To 100 Watts Up To 6 GHz

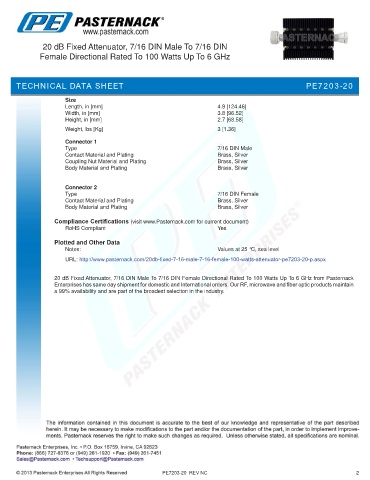

TECHNICAL DATA SHEET PE7203-20

Size
Length, in [mm] 4.9 [124.46]
Width, in [mm] 3.8 [96.52]
Height, in [mm] 2.7 [68.58]
.
Weight, lbs [Kg] 3 [1.36]
Connector 1
Type 7/16 DIN Male
Contact Material and Plating Brass, Silver
Coupling Nut Material and Plating Brass, Silver
Body Material and Plating Brass, Silver

Connector 2
Type 7/16 DIN Female
Contact Material and Plating Brass, Silver
Body Material and Plating Brass, Silver

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level
URL: http://www.pasternack.com/20db-fixed-7-16-male-7-16-female-100-watts-attenuator-pe7203-20-p.aspx

20 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN Female Directional Rated To 100 Watts Up To 6 GHz from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain
a 99% availability and are part of the broadest selection in the industry.

PE7203-20 REV NC 2
