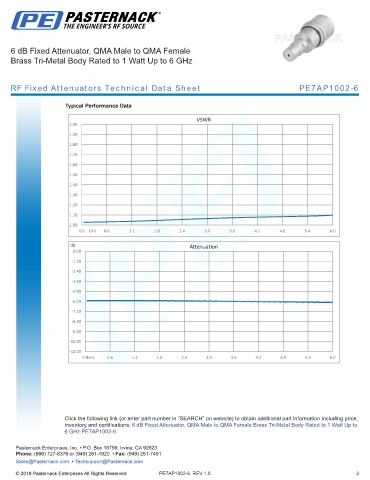

6 dB Fixed Attenuator, QMA Male to QMA Female
Brass Tri-Metal Body Rated to 1 Watt Up to 6 GHz
RF Fixed Attenuators Technical Data Sheet PE7AP1002-6
Typical Performance Data
VSWR
2.00
1.90
1.80
1.70
1.60
1.50
1.40
1.30
1.20
1.10
1.00
0.0 GHz 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6.0
dB Attenuation
0.00
-1.20
-2.40
-3.60
-4.80
-6.00
-7.20
-8.40
-9.60
-10.80
-12.00
0.0 GHz 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6.0
