0 to 102 dB Push Button Step Attenuator, BNC Female To BNC
Female With 1 dB Step Rated To 1 Watt Up To 750 MHz

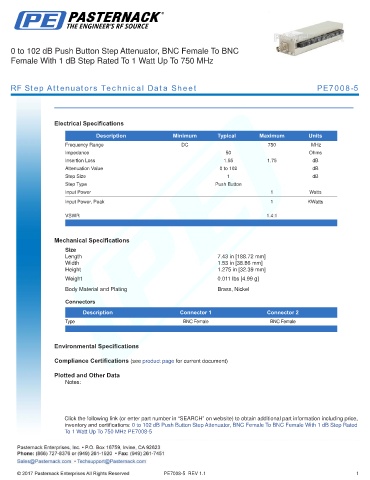

RF Step Attenuators Technical Data Sheet PE7008-5

.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 750 MHz
Impedance 50 Ohms
Insertion Loss 1.55 1.75 dB
Attenuation Value 0 to 102 dB
Step Size 1 dB
Step Type Push Button
Input Power 1 Watts
Input Power, Peak 1 KWatts

VSWR 1.4:1
.

Mechanical Specifications
Size
Length 7.43 in [188.72 mm]
Width 1.53 in [38.86 mm]
Height 1.275 in [32.39 mm]
.
Weight 0.011 lbs [4.99 g]
.
Body Material and Plating Brass, Nickel

Connectors
Description Connector 1 Connector 2
Type BNC Female BNC Female
.

Environmental Specifications

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 102 dB Push Button Step Attenuator, BNC Female To BNC Female With 1 dB Step Rated
To 1 Watt Up To 750 MHz PE7008-5

PE7008-5 REV 1.1 1
