6 dB Fixed Attenuator, SMA Male to SMA Female Brass
Tri-Metal Body Rated to 1 Watt Up to 2 GHz

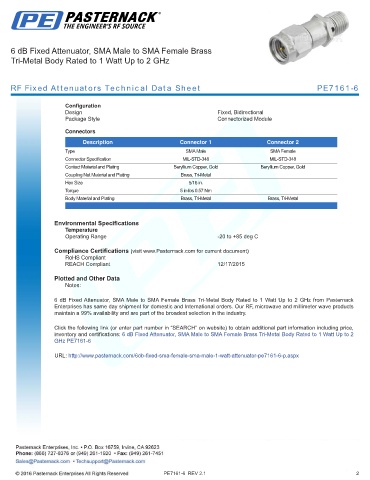

RF Fixed Attenuators Technical Data Sheet PE7161-6

Configuration
Design Fixed, Bidirectional
Package Style Connectorized Module
Connectors

Description Connector 1 Connector 2
Type SMA Male SMA Female
Connector Specification MIL-STD-348 MIL-STD-348
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Coupling Nut Material and Plating Brass, Tri-Metal
Hex Size 5/16 in.
Torque 5 in-lbs 0.57 Nm
Body Material and Plating Brass, Tri-Metal Brass, Tri-Metal
.

Environmental Specifications
Temperature
Operating Range -20 to +85 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015

Plotted and Other Data
Notes:

6 dB Fixed Attenuator, SMA Male to SMA Female Brass Tri-Metal Body Rated to 1 Watt Up to 2 GHz from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 6 dB Fixed Attenuator, SMA Male to SMA Female Brass Tri-Metal Body Rated to 1 Watt Up to 2
GHz PE7161-6

URL: http://www.pasternack.com/6db-fixed-sma-female-sma-male-1-watt-attenuator-pe7161-6-p.aspx
