0 to 1 dB Rotary Step Attenuator, 75 Ohm BNC Female To 75
Ohm BNC Female With 0.1 dB Step Rated To 1 Watt Up To 1 GHz

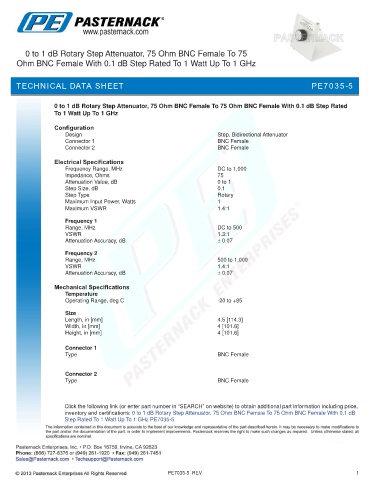

TECHNICAL DATA SHEET PE7035-5
0 to 1 dB Rotary Step Attenuator, 75 Ohm BNC Female To 75 Ohm BNC Female With 0.1 dB Step Rated
To 1 Watt Up To 1 GHz
Configuration
Design Step, Bidirectional Attenuator
Connector 1 BNC Female
Connector 2 BNC Female
Electrical Specifications
Frequency Range, MHz DC to 1,000
Impedance, Ohms 75
Attenuation Value, dB 0 to 1
Step Size, dB 0.1
Step Type Rotary
Maximum Input Power, Watts 1
Maximum VSWR 1.4:1
Frequency 1
Range, MHz DC to 500
VSWR 1.3:1
Attenuation Accuracy, dB ± 0.07
Frequency 2
Range, MHz 500 to 1,000
VSWR 1.4:1
Attenuation Accuracy, dB ± 0.07
Mechanical Specifications
Temperature
Operating Range, deg C -20 to +85
Size
Length, in [mm] 4.5 [114.3]
Width, in [mm] 4 [101.6]
Height, in [mm] 4 [101.6]
.
Connector 1
Type BNC Female
Connector 2
Type BNC Female
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 1 dB Rotary Step Attenuator, 75 Ohm BNC Female To 75 Ohm BNC Female With 0.1 dB
Step Rated To 1 Watt Up To 1 GHz PE7035-5
PE7035-5 REV 1
