0 to 70 dB Rotary Step Attenuator, 75 Ohm BNC
Female To 75 Ohm BNC Female With 10 dB
Step Rated To 1 Watt Up To 500 MHz

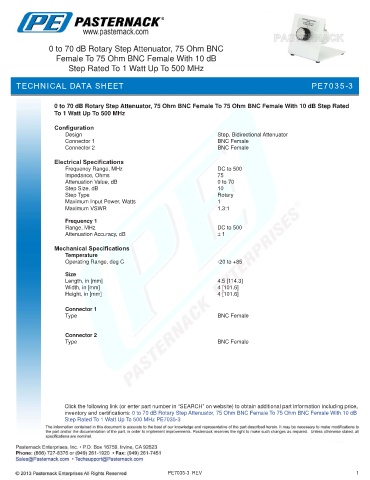

TECHNICAL DATA SHEET PE7035-3

0 to 70 dB Rotary Step Attenuator, 75 Ohm BNC Female To 75 Ohm BNC Female With 10 dB Step Rated
To 1 Watt Up To 500 MHz

Configuration
Design Step, Bidirectional Attenuator
Connector 1 BNC Female
Connector 2 BNC Female

Electrical Specifications
Frequency Range, MHz DC to 500
Impedance, Ohms 75
Attenuation Value, dB 0 to 70
Step Size, dB 10
Step Type Rotary
Maximum Input Power, Watts 1
Maximum VSWR 1.3:1

Frequency 1
Range, MHz DC to 500
Attenuation Accuracy, dB ± 1
Mechanical Specifications
Temperature
Operating Range, deg C -20 to +85

Size
Length, in [mm] 4.5 [114.3]
Width, in [mm] 4 [101.6]
Height, in [mm] 4 [101.6]
.
Connector 1
Type BNC Female

Connector 2
Type BNC Female

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 70 dB Rotary Step Attenuator, 75 Ohm BNC Female To 75 Ohm BNC Female With 10 dB
Step Rated To 1 Watt Up To 500 MHz PE7035-3

PE7035-3 REV 1
