63.5 dB Programmable TTL Controlled Attenuator, SMA Female
to SMA Female, 0.5 dB Steps From 30 MHz to 3 GHz

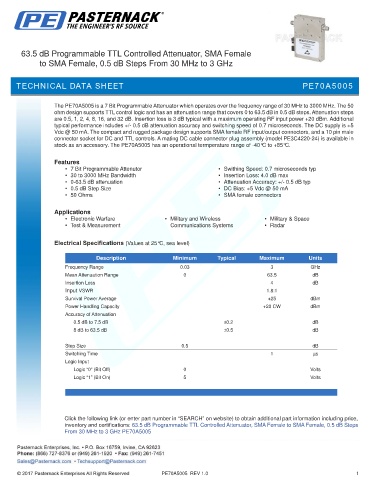

TECHNICAL DATA SHEET PE70A5005

The PE70A5005 is a 7 Bit Programmable Attenuator which operates over the frequency range of 30 MHz to 3000 MHz. The 50
ohm design supports TTL control logic and has an attenuation range that covers 0 to 63.5 dB in 0.5 dB steps. Attenuation steps
are 0.5, 1, 2, 4, 8, 16, and 32 dB. Insertion loss is 3 dB typical with a maximum operating RF input power +20 dBm. Additional
typical performance includes +/- 0.5 dB attenuation accuracy and switching speed of 0.7 microseconds. The DC supply is +5
Vdc @ 50 mA. The compact and rugged package design supports SMA female RF input/output connectors, and a 10 pin male
connector socket for DC and TTL controls. A mating DC cable connector plug assembly (model PE3C4220-24) is available in
stock as an accessory. The PE70A5005 has an operational termperature range of -40°C to +85°C.

Features
• 7 Bit Programmable Attenutor • Swithing Speed: 0.7 microseconds typ
• 30 to 3000 MHz Bandwidth • Insertion Loss: 4.0 dB max
• 0-63.5 dB attenuation • Attenuation Accuracy: +/- 0.5 dB typ
• 0.5 dB Step Size • DC Bias: +5 Vdc @ 50 mA
• 50 Ohms • SMA female connectors

Applications
• Electronic Warfare • Military and Wireless • Military & Space
• Test & Measurement Communications Systems • Radar

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range 0.03 3 GHz
Mean Attenuation Range 0 63.5 dB
Insertion Loss 4 dB
Input VSWR 1.8:1
Survival Power Average +25 dBm
Power Handling Capacity +20 CW dBm
Accuracy of Attenuation
0.5 dB to 7.5 dB ±0.2 dB
8 dB to 63.5 dB ±0.5 dB
.
Step Size 0.5 dB
Switching Time 1 µs
Logic Input
Logic “0” (Bit Off) 0 Volts
Logic “1” (Bit On) 5 Volts
.
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 63.5 dB Programmable TTL Controlled Attenuator, SMA Female to SMA Female, 0.5 dB Steps
From 30 MHz to 3 GHz PE70A5005

PE70A5005 REV 1.0 1
