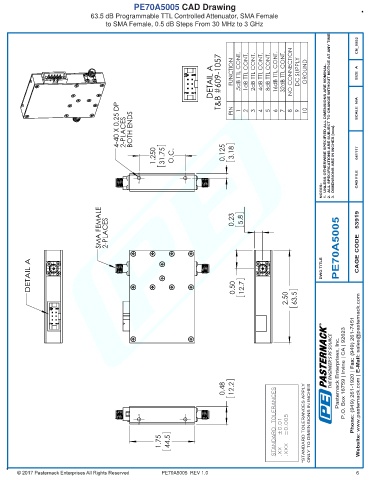

PE70A5005 CAD Drawing
63.5 dB Programmable TTL Controlled Attenuator, SMA Female
to SMA Female, 0.5 dB Steps From 30 MHz to 3 GHz

CN_0992

DETAIL A T&B #609-1057 FUNCTION .5dB TTL CONT. 1dB TTL CONT. 2dB TTL CONT. 4dB TTL CONT. 8dB TTL CONT. 16dB TTL CONT. 32dB TTL CONT. NO CONNECTION DC SUPPLY GROUND SIZE A

4-40 X 0.25 DP 2-PLACES BOTH ENDS PIN 1 2 3 4 5 6 7 8 9 10 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

1.250 31.75 O.C. 0.125 3.18 3. DIMENSIONS ARE IN INCHES [mm]. 041117

NOTES: CAD FILE

SMA FEMALE 2-PLACES 0.23 5.8 PE70A5005 CAGE CODE 53919

DETAIL A DWG TITLE

12.7
0.50
2.50 63.5

R
THE ENGINEER'S RF SOURCE

Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
0.48 12.2
STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

.XXX ±0.005
1.75 44.5 .XX ±0.01

PE70A5005 REV 1.0 6
